Multepak Hot Water Shrink Tanks / Dip Tanks Suitable Fresh Meat Processing Manual Shrinking and Drying Units
Multepak Hot Water DIp Shrink Tank
About Multepak：
The MP-5060 water tank is a semi-automatic hot water dip tank for higher output applications. Designed to be used in line with our BT series of belted vacuum chamber machines or as a stand-alone unit, the MP-5060 hot water tank offers the performance you want in a dip tank. Maximum shrinkage is achieved by means of complete submersion in the temperature controlled water.
The touchscreen interface and PLC controls allow for simple adjustment and monitoring of current settings. Fully enclosed and sealed electrical boxes ensure years of trouble-free operation and the stainless steel construction provides superior corrosion resistance.
Machine Picture：
About Multepak：
The MP-5060 water tank is a semi-automatic hot water dip tank for higher output applications. Designed to be used in line with our BT series of belted vacuum chamber machines or as a stand-alone unit, the MP-5060 hot water tank offers the performance you want in a dip tank. Maximum shrinkage is achieved by means of complete submersion in the temperature controlled water.
The touchscreen interface and PLC controls allow for simple adjustment and monitoring of current settings. Fully enclosed and sealed electrical boxes ensure years of trouble-free operation and the stainless steel construction provides superior corrosion resistance.
Machine Picture：
How to operate the machine?
1. According to the power cord plugged into a power supply, and reliable grounding.
2. Press power, turn on the light, adjust and set the temperature: press Set, press < switch the number position, press ∧ ∨ increase or decrease the number, SV means the set value,PV shows the current temperature. Attention: It takes about 10-20 minutes to reach the set temperature.
3. Adjust the timing controller, set rise and fall time0 0 s 0 0 s The first group is fall time, 0-99 s adjustable, the second group is rise time, 0-99 s adjustable.
4.Switch to AUTO, start auto-cycle mode, press Start, machine start working. Switch to Manual,press Start, the machine starts single cycle mode,if press Up and Down machine jog up and down.
5.When the water low to reach the warning level,the temperature controller stop working,meanwhile, the light is shining. When you fill the water into the tank,it resume to work.
6.Press Emergency ,machine stop working immediately,press Start machine reset to the original position.
2. Press power, turn on the light, adjust and set the temperature: press Set, press < switch the number position, press ∧ ∨ increase or decrease the number, SV means the set value,PV shows the current temperature. Attention: It takes about 10-20 minutes to reach the set temperature.
3. Adjust the timing controller, set rise and fall time0 0 s 0 0 s The first group is fall time, 0-99 s adjustable, the second group is rise time, 0-99 s adjustable.
4.Switch to AUTO, start auto-cycle mode, press Start, machine start working. Switch to Manual,press Start, the machine starts single cycle mode,if press Up and Down machine jog up and down.
5.When the water low to reach the warning level,the temperature controller stop working,meanwhile, the light is shining. When you fill the water into the tank,it resume to work.
6.Press Emergency ,machine stop working immediately,press Start machine reset to the original position.
Machine Specification：
| Model | MP-5060 |
| Voltage | 4.5*2KW |
| Water tank | 0.14m3 |
| Tank dimension | 600*500*498mm |
| Max loading |
100KG
|
| Temperature | 0-99℃ Adjustable |
| Control | Auto/Manual |

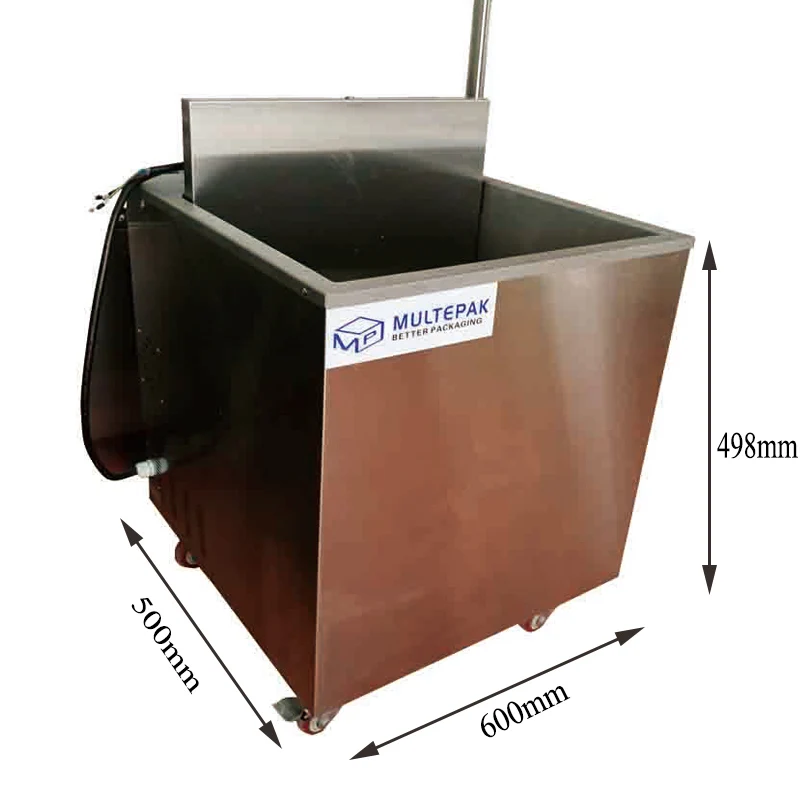

Machine Size：
All the vacuum packing product：
FAQ：
1. How should i pay for my order ? what is the procession of this purchase ? We accept TT by bank or other methods. You can do 30% prepayment at first, then we will start to make production.When the machine is ready , we will take pictures to you, and then you can do the balance.I will
send the machine to you after we got your payment.
2. How about your service after sales ? can your engineer speak fluent english ? We offer the service from you got the machine, including how to install the machine,how to use machine, how to let machine work.,and so on. Usually ,we will teach you how to do by email or by skype our engineer who has many years of experience for cnc machine service . he can speak fulently in english .so he can slove the problem in short time.
3. Are you a factory or trading company?
We are the manufacturer . As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory.
4. How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 10 to 20 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
2. How about your service after sales ? can your engineer speak fluent english ? We offer the service from you got the machine, including how to install the machine,how to use machine, how to let machine work.,and so on. Usually ,we will teach you how to do by email or by skype our engineer who has many years of experience for cnc machine service . he can speak fulently in english .so he can slove the problem in short time.
3. Are you a factory or trading company?
We are the manufacturer . As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory.
4. How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 10 to 20 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
